Electrical Design License: UNN System

Electrical Design License: UNN System

This document package includes the following:

  • Electrical Schematic - UNN System: Main (.pdf)
  • Electrical Schematic - UNN System: DC Power Distribution (.pdf)
  • Non-Exclusive, Non-Transferable Lifetime License Certificate (.pdf)

Digital Inputs:
(x8) Fused 24VDC Sourcing Digital Inputs

Digital Outputs:
(x6) Fused 24VDC Powered Outputs rated for 1A/Point (max)

Analog Inputs:
(x16) Analog Current Input Module (0-20mA)

Analog Outputs:
(x16) Analog Current Output Module (4-20mA)

Ethernet Connectivity:
(x2) RJ45 GbE (Cat6a)

Power Input:
100-240VAC Wide Input Range; 45 – 65Hz
Max 10A @ 115VAC Nominal

PLC Configuration:

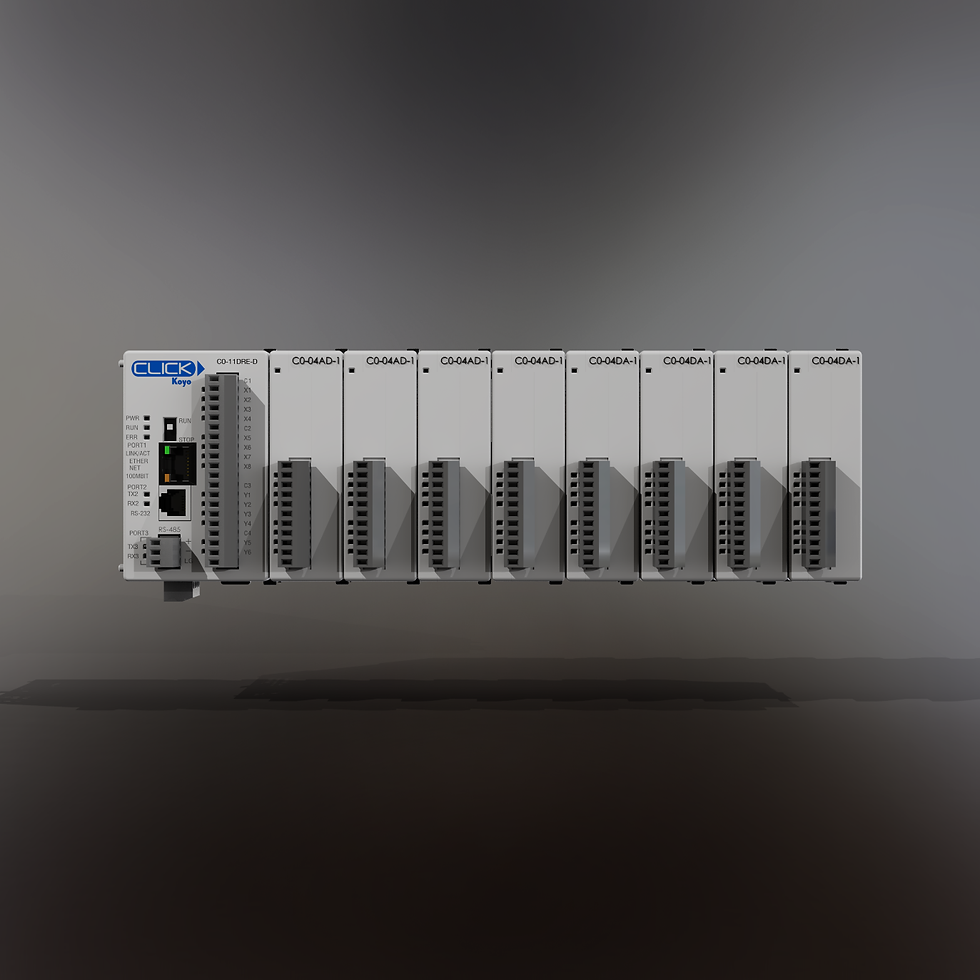

(x1) Automation Direct CLICK Koyo Ethernet Standard PLC; C0-11DRE-D
(x4) 4-Point Analog Current Input Module; C0-04AD-1
(x4) 4-Point Analog Current Output Module; C0-04DA-1

Power Supply:
RHINO DC Power Supply; PS24-500D

C$1,900.00Price

To request an alternate electrical design at no additional cost, contact us at info@valkyriecontrols.com or through our live chat.
