Electrical Design License: SAGA System

Electrical Design License: SAGA System

This document package includes the following:

  • Electrical Schematic - SAGA System: Main (.pdf)
  • Electrical Schematic - SAGA System: DC Power Distribution (.pdf)
  • Non-Exclusive, Non-Transferable Lifetime License Certificate (.pdf)

RTD Inputs:
(x24) RTD Inputs (Pt100, Pt1000, JPt100, Cu10, Cu25, Ni120)

Ethernet Connectivity:
(x2) RJ45 GbE (Cat6a)

Power Input:
(x1) 100-240VAC Wide Input Range; 45 – 65Hz
Max 3A @ 115VAC Nominal

PLC Configuration:

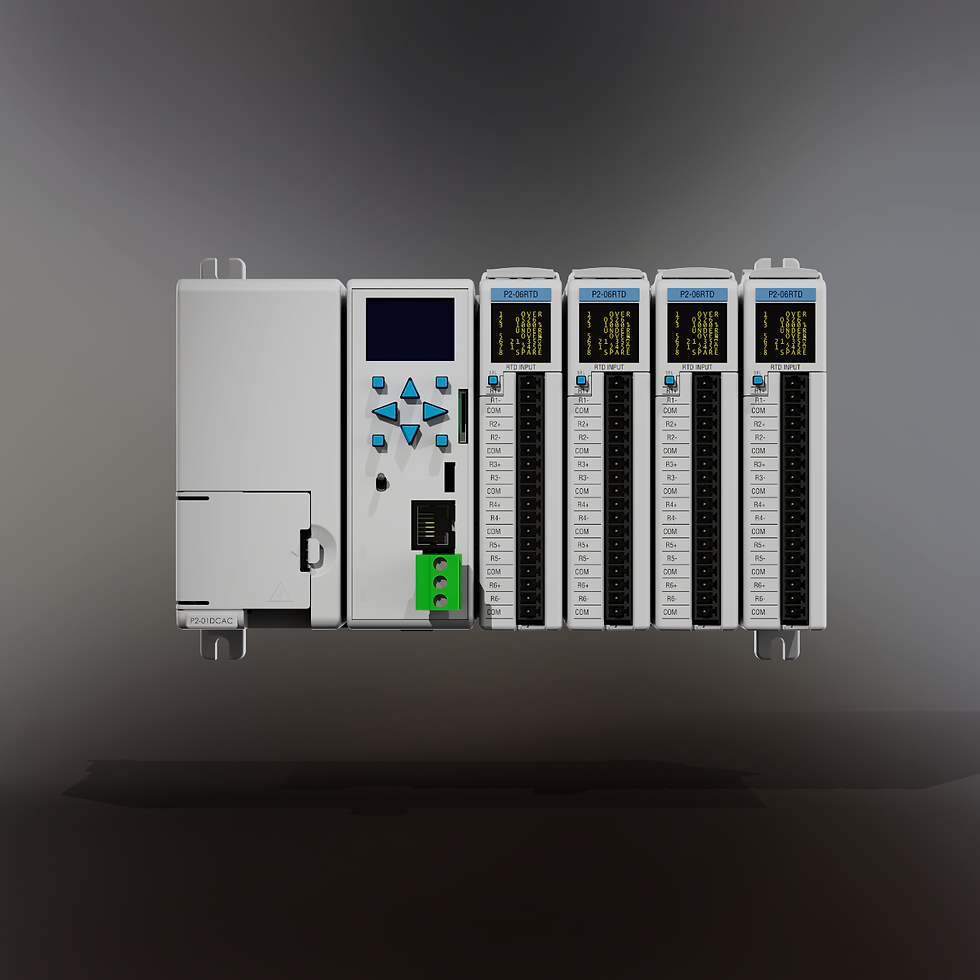

(x1) Productivity 2000 4-Slot Chassis; P2-04B
(x1) Productivity 2000 AC/DC Base Power Supply; P2-01DCAC
(x1) Productivity 2000 CPU, Ethernet Connectivity; P2-550
(x4) 6-Point RTD Input Module; P2-06RTD

Power Supply:
(x1) RHINO DC Power Supply; PS24-150D

C$1,175.00Price

To request an alternate electrical design at no additional cost, contact us at info@valkyriecontrols.com or through our live chat.
