Electrical Design License: OLIN System

Electrical Design License: OLIN System

This document package includes the following:

  • Electrical Schematic - OLIN System: Main (.pdf)
  • Electrical Schematic - OLIN System: DC Power Distribution (.pdf)
  • Non-Exclusive, Non-Transferable Lifetime License Certificate (.pdf)

Digital Inputs:
(x72) Fused 24VDC Sourcing Digital Inputs

Digital Outputs:
(x4) Fused 24VDC Powered Outputs rated for 1A/Point (max)
(x64) Fused 24VDC Sourcing Digital Outputs

Ethernet Connectivity:
(x2) RJ45 GbE (Cat6a)

Power Input:
100-240VAC Wide Input Range; 45 – 65Hz
Max 10A @ 115VAC Nominal

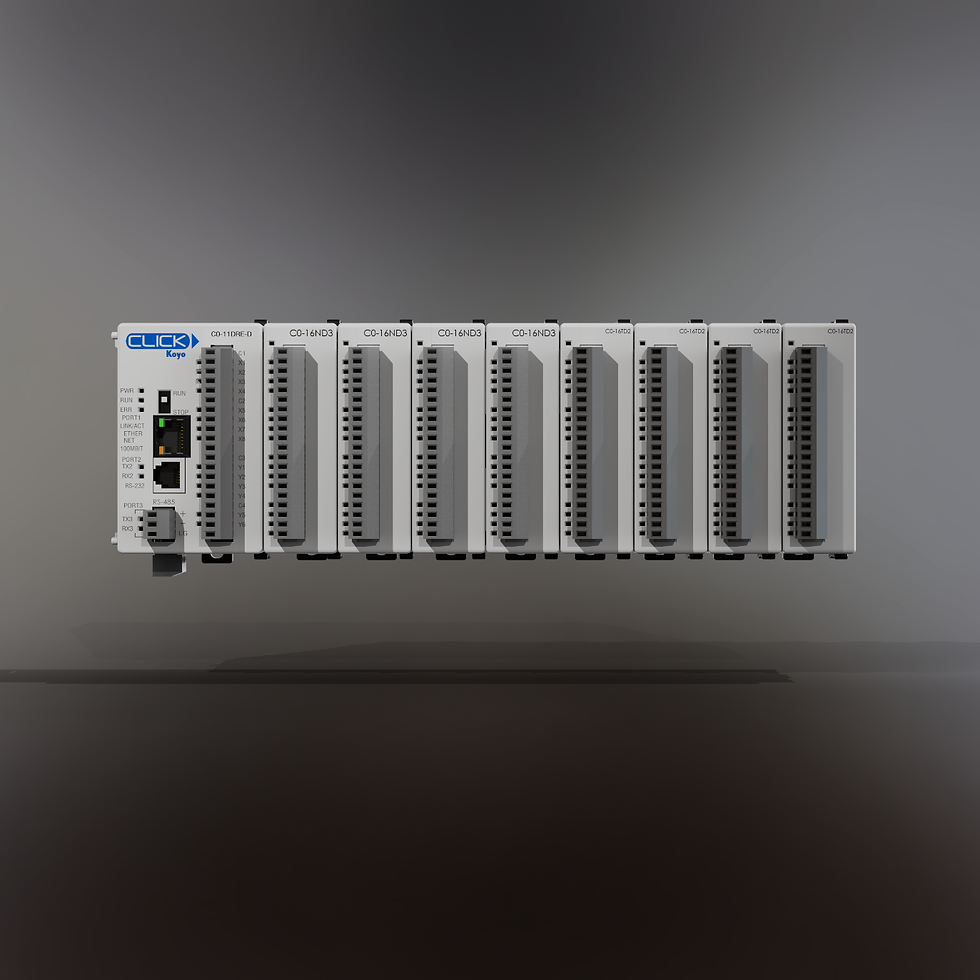

PLC Configuration:
(x1) Automation Direct CLICK Koyo Ethernet Standard PLC; C0-11DRE-D
(x4) 16-Point Sinking/Sourcing Digital Input Module; C0-16ND3
(x4) 16-Point Sinking/Sourcing Digital Output Module; C0-16TD2

Power Supply:
RHINO DC Power Supply; PS24-500D

C$1,900.00Price

To request an alternate electrical design at no additional cost, contact us at info@valkyriecontrols.com or through our live chat.
